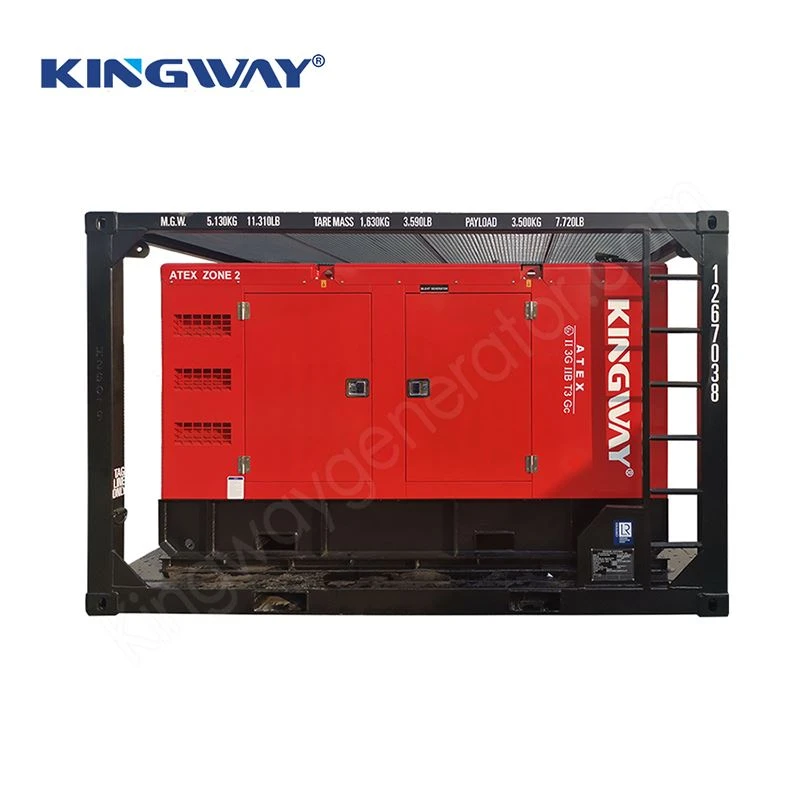

Diesel tsav lub tshuab hluav taws xob teeb tsa rau cov ntawv thov hauv Cheeb Tsam Kev Nyab Xeeb (Tebchaws 2) mounted hauv DNV ntawv pov thawj 2.7-1 Skid thav duab enclosure ua 400KVA @ 0.8 pf, 400VAC, 3 Phase + Neutral, 50HZ / 60HZ Output
Cov khoom no yog cov khoom siv hluav taws xob tshwj xeeb tsim los rau thaj tsam 2 qhov chaw muaj kev phom sij uas muaj peev xwm tawg tau, xws li cov roj, tshuaj lom neeg, thiab kev lag luam roj. Nws ua raws li kev tawg thoob ntiaj teb- cov qauv pov thawj suav nrog ATEX, tshem tawm kev nyab xeeb ntawm qhov chaw. Lub caij no, peb tuaj yeem pab cov neeg siv khoom ua tiav cov txheej txheem ntawv pov thawj ATEX kom ntseeg tau tias cov cuab yeej siv tau ua raws li cov cai.
Nws khav theeb qhov zoo tshaj plaws: Nrog lub zog ntsuas ntawm 400KVA (320kW prime zog, 440kW standby lub zog), nws tau nruab nrog lub npe nrov nrov xws li YANMAR thiab FPT IVECO, xa lub zog muaj zog thaum tswj kev ua haujlwm siab thiab kev lag luam- roj noj tsuas yog 70.4L / h hauv qab 80%. Lub IP54 siab- kev tiv thaiv enclosure ua ke nrog ib tug ntsiag to tsim enables nws tiv thaiv plua plav thiab corrosion, nrog suab nrov tsawg li ntawm 68dB (A) ntawm 7 meters. Tsis tas li ntawd, nws tau nruab nrog lub tshuab ntse ntse hauv Dej Hiav Txwv, txhawb kev saib xyuas tej thaj chaw deb thiab tsis siv neeg lub tswb nrov, nrog rau ncua sijhawm txij nkawm ntawm 2000 teev kom muaj kev cuam tshuam ntau dua - ua haujlwm dawb thiab tu.
Customization cov kev pabcuam muaj, suav nrog kev hloov hluav taws xob (350-450KVA) thiab kev hloov kho cov qauv (xws li, hom ntim khoom), ua rau nws tsim nyog rau ntau yam xwm txheej xws li thaj chaw sab nrauv thiab cov mining. Nws yog qhov kev xaiv txhim khu kev qha rau thaum muaj xwm txheej ceev thiab lub zog tseem ceeb hauv thaj chaw muaj kev phom sij.
|
Qauv |
EADG400-EX2 |
|
Ua kom tiav tshuab |
|
|
Kev tawg- pov thawj Mark |
|
|
Cheeb tsam xwm txheej |
ZONE 2 |
|
Daim ntawv pov thawj |
《Kev tshaj tawm ntawm kev sib haum xeeb nthuav qhia |
|
Cov khoom tsim tawm tsim tawm (0.8 pf 25ºC) |
400KVA 400V / 50HZ |
|
Max. Lub kaum sab xis ua haujlwm |
15 degree |
|
Lub suab nrov (± 5 dBA ntawm 7m) |
85 |
|
Tshuab Luj (kg) |
4500 (hli) |
|
Medidas: L x W x H mm |
4000X2200X2400 |
|
Roj tank |
>400L |
|
DIESEL ENGINE |
|
|
Chaw tsim tshuaj paus |
CUMMINS |
|
Qauv |
KTA19-G4 |
|
Kev ceev ceev (rpm) |
1500 rpm thiab 1800 rpm |
|
Thawj Genset Prime Fais Fab (kW) |
400 kW @ 1500 rpm, 450 kW @ 1800 rpm |
|
Kev tshem tawm (L) |
19L |
|
No. ntawm lub tog raj kheej |
6 |
|
Hluav taws xob qhov system Voltage (V) |
24 |
|
Rated Peev Xwm ntawm Roj Teeb |
210 Aw |
|
GENERATORS |
|
|
Chaw tsim tshuaj paus |
Kingway OEM |
|
Kev tawg- pov thawj Mark |
|
|
Daim ntawv pov thawj naj npawb |
《Kev tshaj tawm ntawm kev sib haum xeeb nthuav qhia |
|
Cheeb tsam xwm txheej |
ZONE 2 |
|
Ambient kub |
-25℃~ +60 degree |
|
Qhov siab |
Tsawg dua lossis sib npaug li 1000M |
|
Rated Voltage |
400V |
|
Rated Zaus |
50HZ thiab 60HZ |
|
Rated REV |
1500RPM thiab 1800RPM |
|
Hwj chim Factor |
0.8 LOJ |
|
Kev ua haujlwm |
Nruam (S1) |
|
IP Qib |
IP55 |
|
Tus tswj |
ComAp npe |
II 3G IIB T3 Gc
II 3G Ex nA IIB T3 IP55
